A1 CLUB
20th Anniversary Key

update 2018.3.14

Details of the Paddle

Features
- Very Compact
- Very Light
- Light Touch
- Contact Gap Adjustment 　　
- Dust Cover
- Screw holes for fixing
- Material

Base　W30xD50 (78mm incl. the lever), H20mm
approx.100g
approx.25g
possible on right and left respectively by decentric posts
U-shape clear acrylic dust cover
Two of 3mm dia screw holes are available at the base bottom
Base:Brass (hair-line polish), Lever: Resin

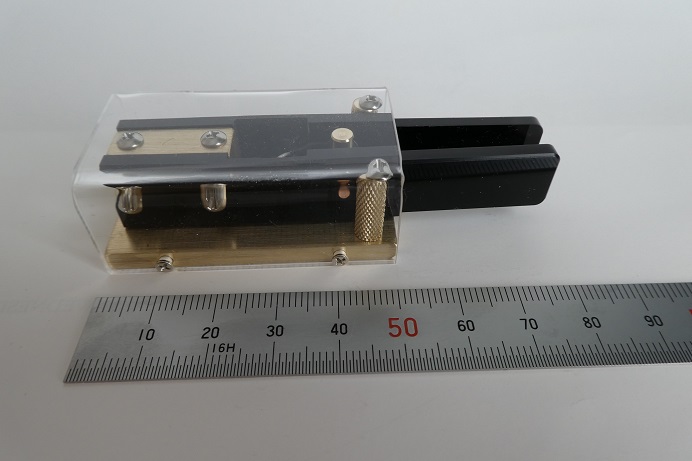

Paddle Left Side

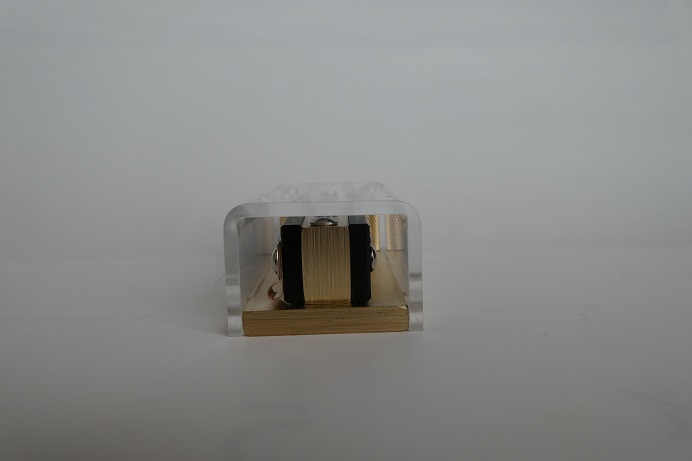

Paddle Rear Side

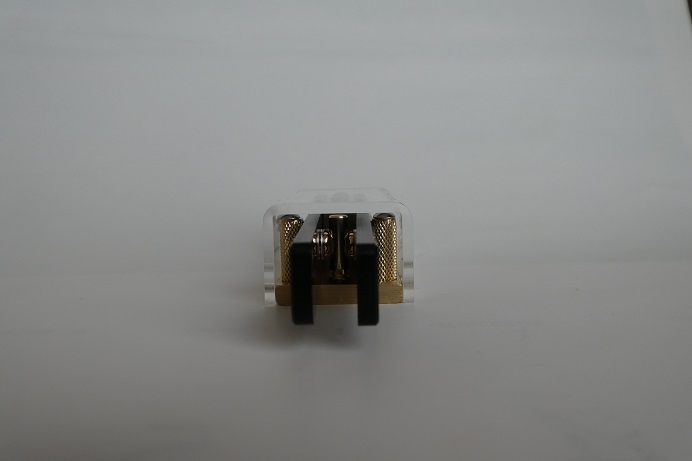

Paddle Front Side

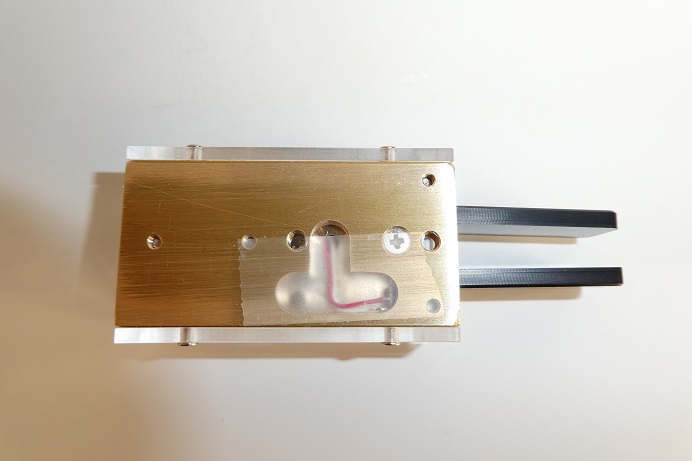

Paddle Bottom Side　
(At the groove, cables are drawn from the contacts. Cable from electric keyer should be connected here)
(more details are shown here )

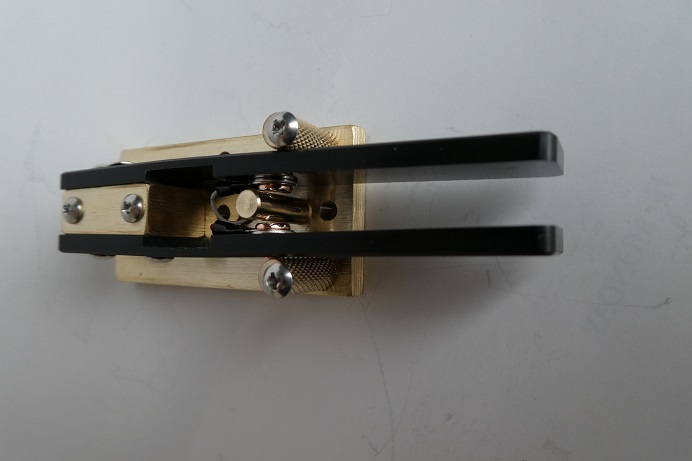

Paddle when dust cover is off

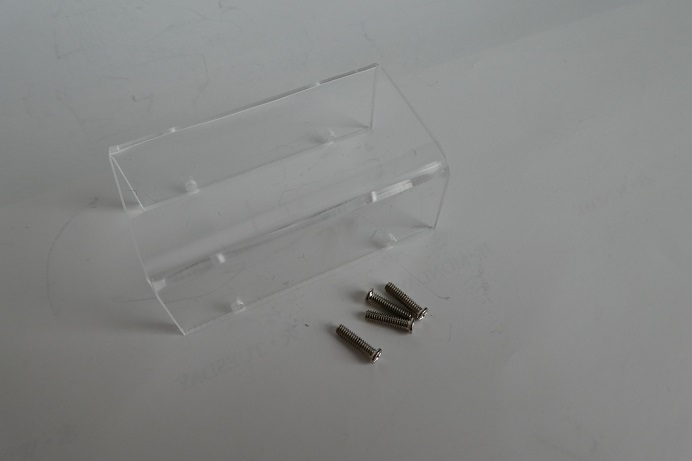

Dust Cover for Paddle (Clear acrylic, 4 x 2mm dia bolts for fxinig to the main body are attached)

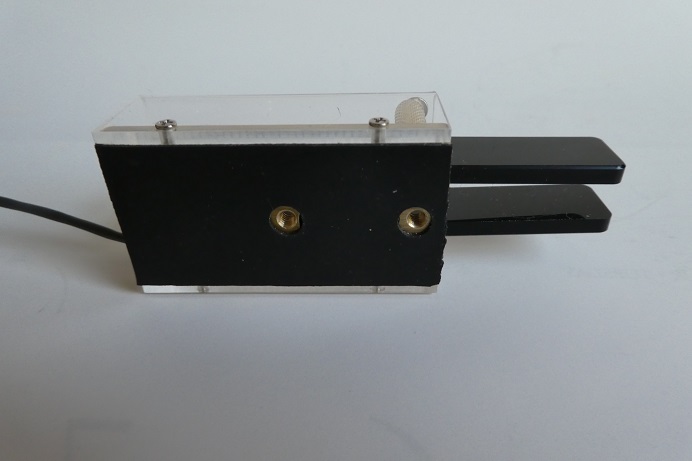

Paddle Rear Side (after rubber sheet attached)
<Two of 3mm dia screw hole for fixing are available.>

Accessories for the Paddle　

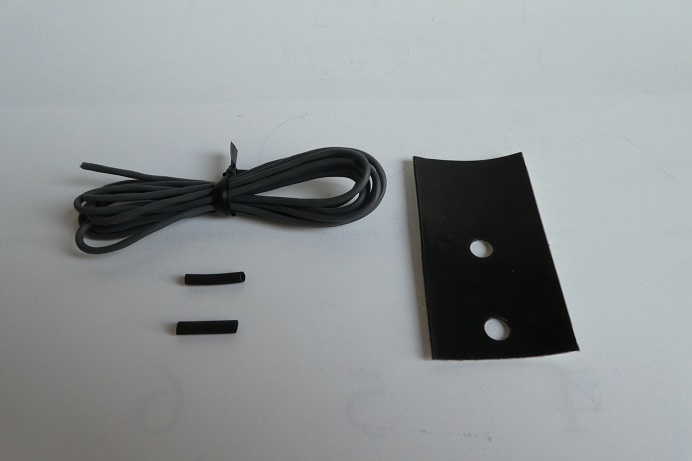

(1.2m long 3 core shield cable x1, Heat shrinkable tube x 2, Rubber sheet x 1)

Name Sticker　(size 10(H)x24(W) mm, 1ea/1set attached)

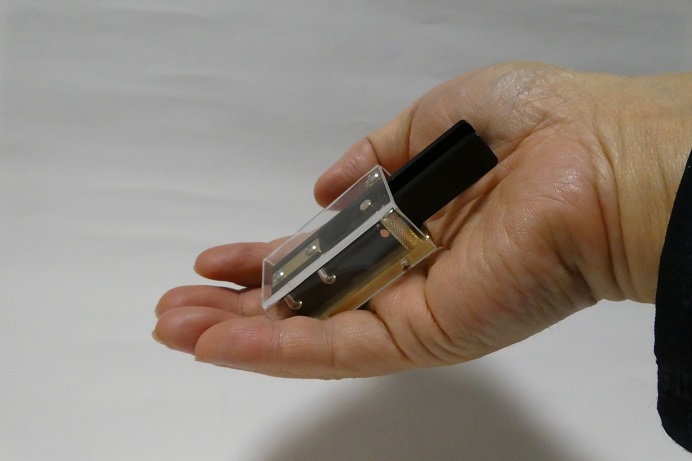

Hand riding paddle

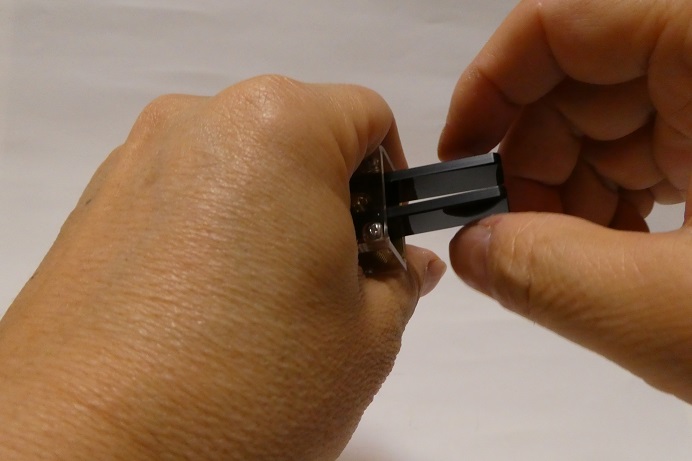

Opearating style holding the paddle at one hand
